Product details:
Overview

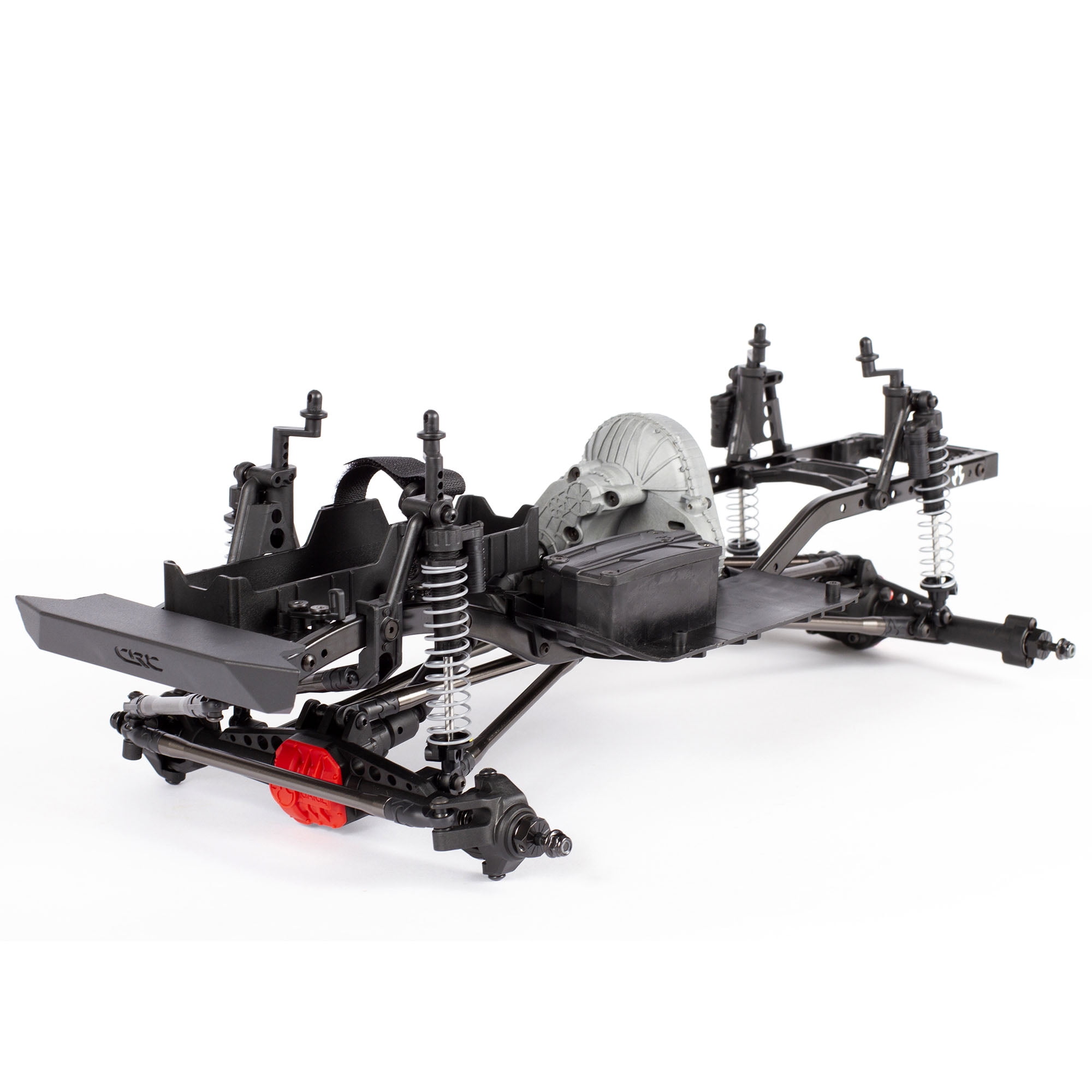

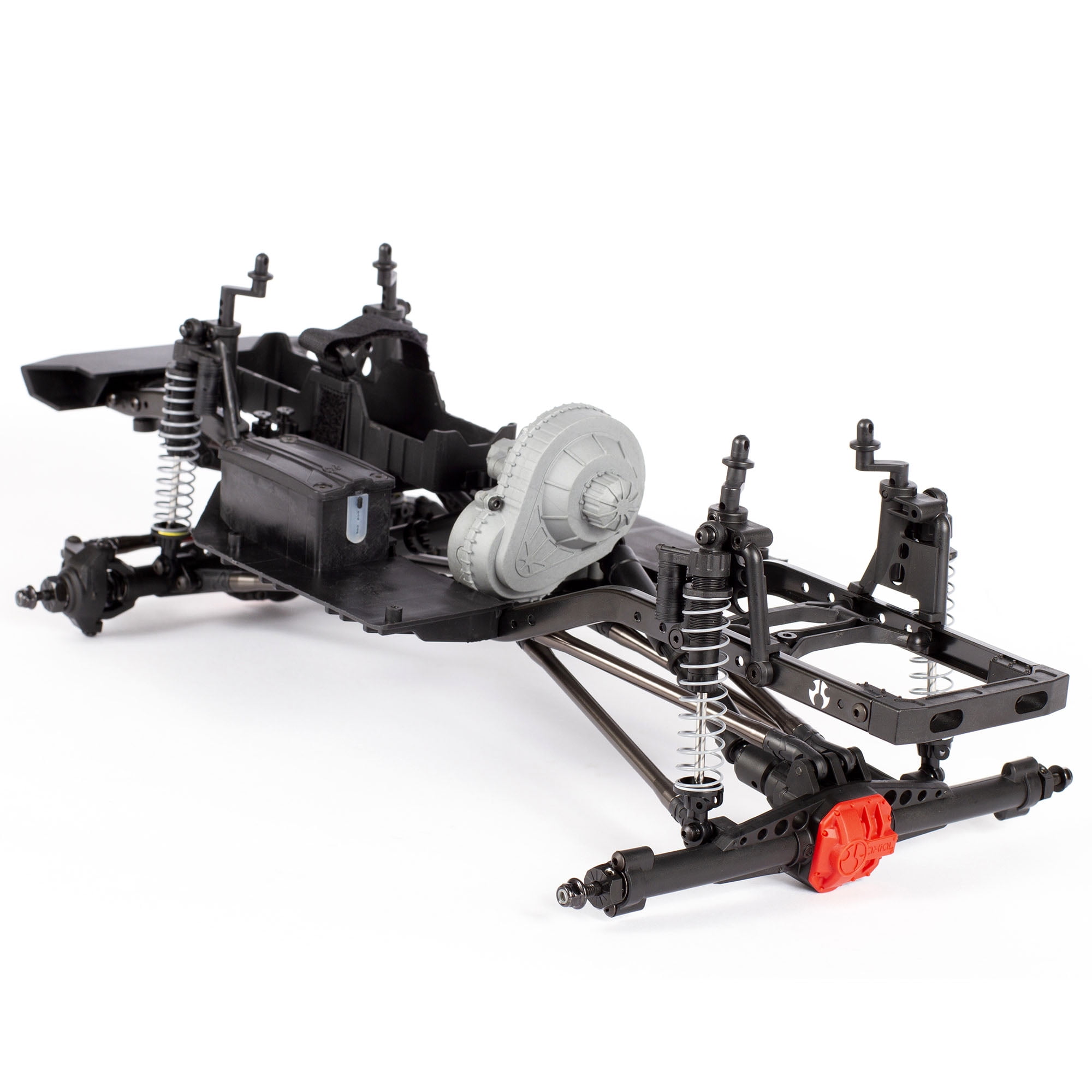

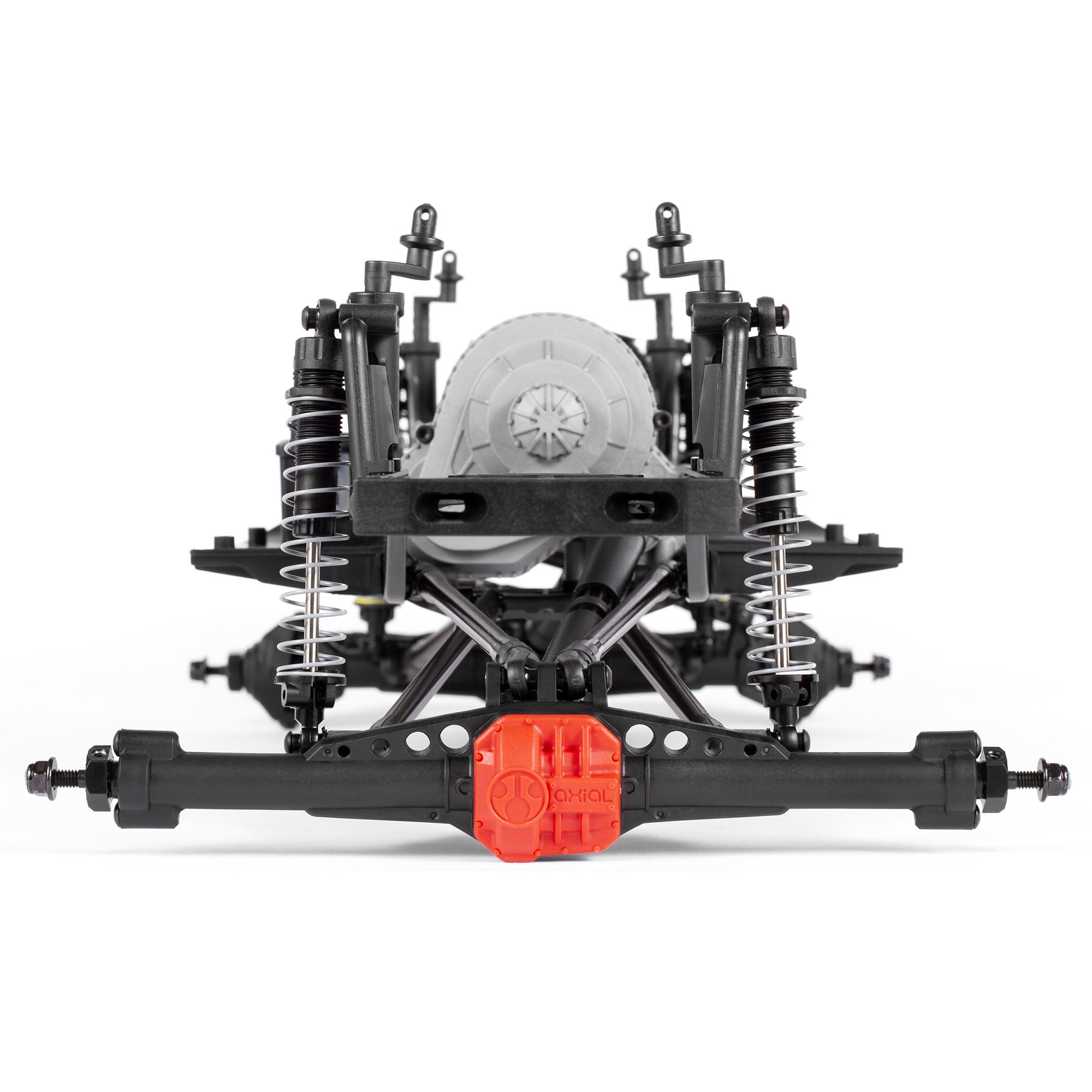

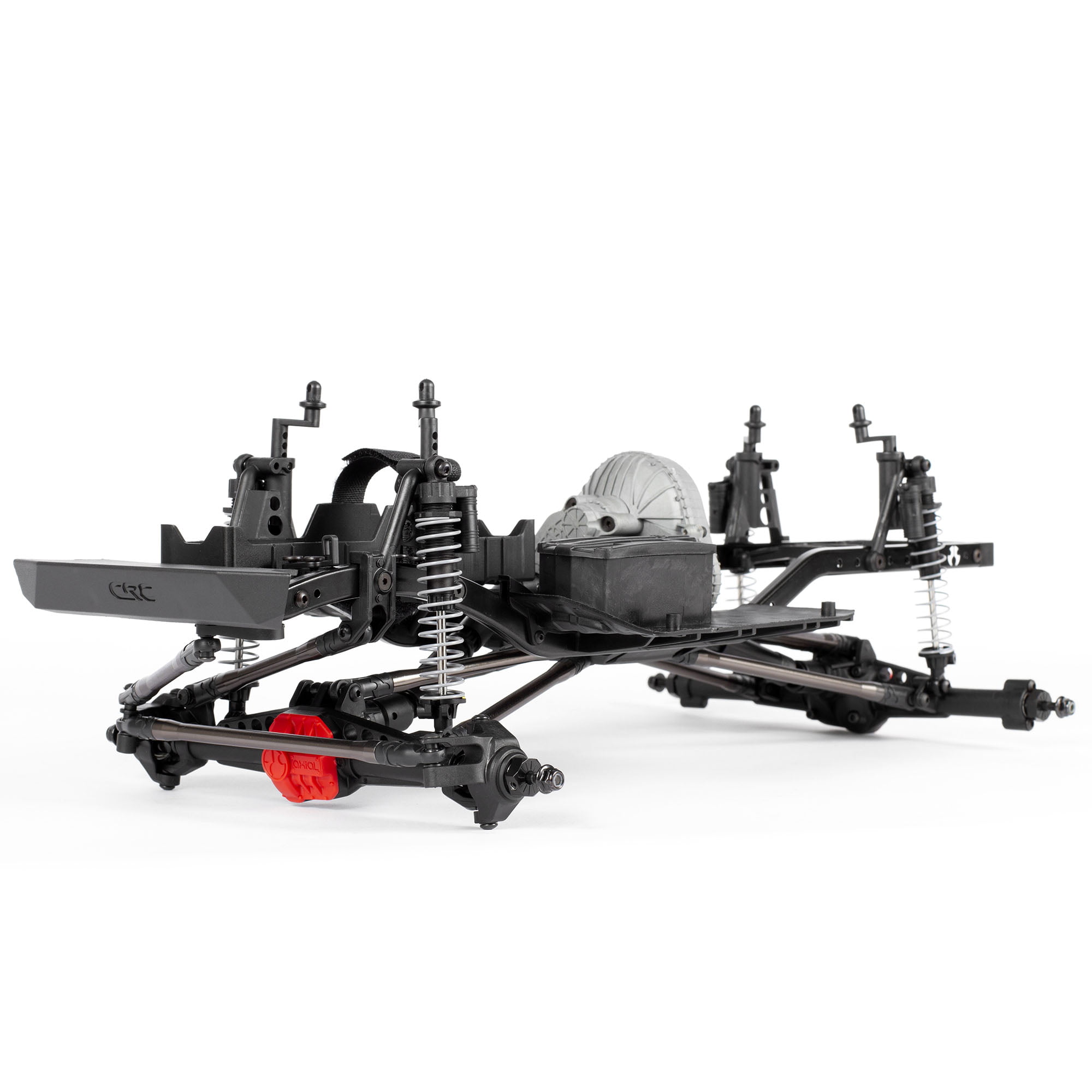

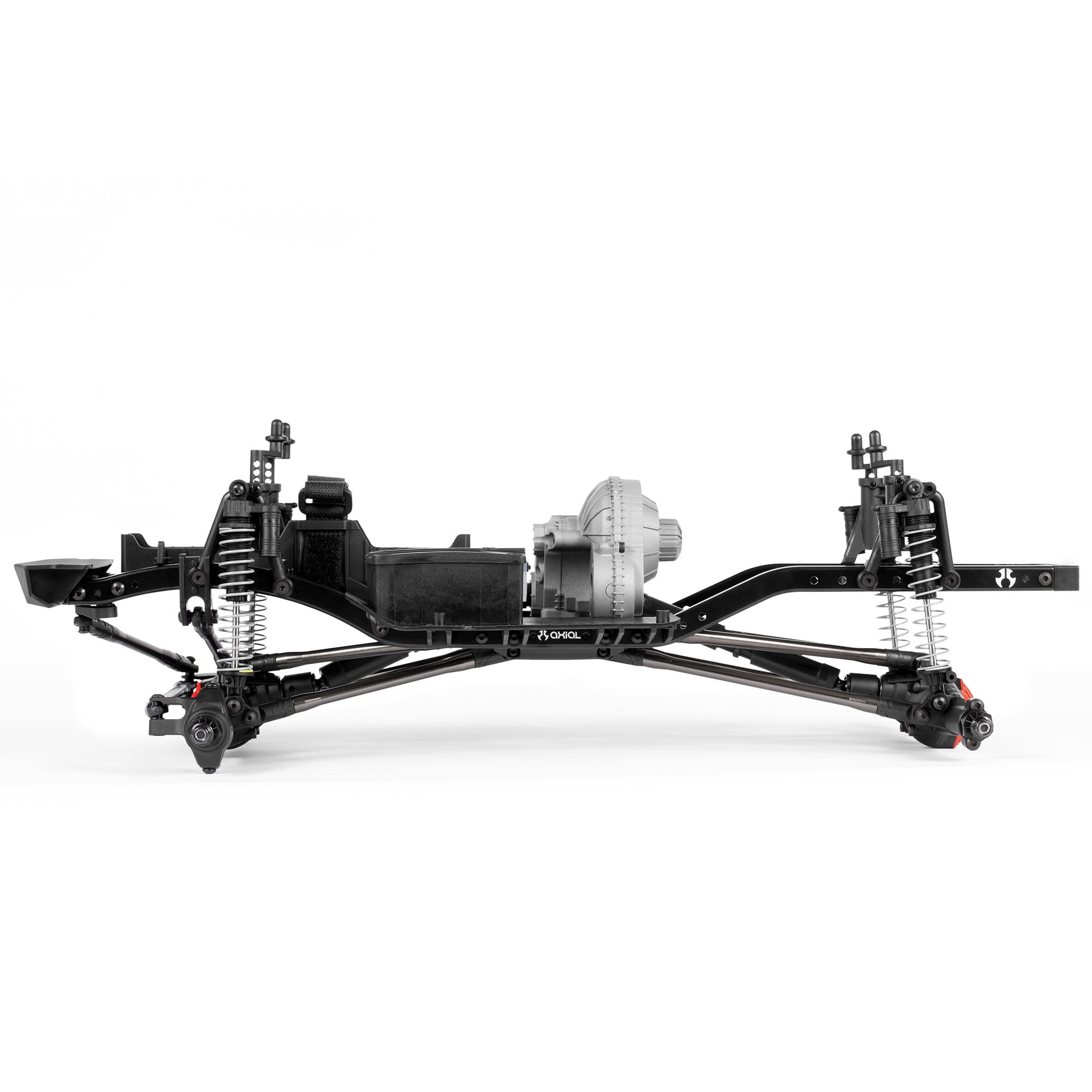

Start with your favorite scale trail chassis the Axial SCX10 II. Top it off with electronics and your choice of body, tires, and wheels. Now you've got a custom rig with proven performance and a look that's all yours: the Axial SCX10 II Raw Builder's Kit!
In 2008 Axial introduced its first SCX10 as a builder's kit that avoided the technical hurdles of scratch-building. Scale trail enthusiasts could focus their attention on other things, like visually personalizing their rig. The SCX10 chassis platform proved to be a highly effective driving machine. Standout features included an all-metal twin C-channel frame, solid transmission, and axles with realism and capabilities to match.
With the SCX10 II, Axial kept the essence of the SCX10 and its metal frame rail chassis, but added scale AR44 high pinion axles, a chassis-mounted servo, redesigned transmission, front mounted battery tray, all aluminum suspension links, suspension designed for nearly zero bump steer, and more.
These are some of the features that make the SCX10 II optimized for performance. Now, with the Raw Builder's Kit version, you can drive a machine that's as personal as it is capable!
AR44 Single Piece Axles
- Single piece axle housing for strength.
- Small pumpkin for increased clearance and scale realism.
- Optimized gear ratio (3.75) for reduced torque twist.
- High pinion gears for added ground clearance, better driveshaft angles, and increased durability.
AX10 Transmission
- Scale looks on the outside strong, all-metal Axial gears on the inside!
- Mimics a real transmission with bell housing, oil pan, and 4X4 transfer case.
- 56T spur gear and 15T pinion 32-pitch for durability.
- Final drive ratio (FDR) 40
Assembled Product Weight:4.75 lb
Brand:Axial
Manufacturer Part Number:AXI90104V2
Manufacturer:Axial
Assembled Product Dimensions (L x W x H):16.00 x 10.60 x 4.40 Inches
